Description

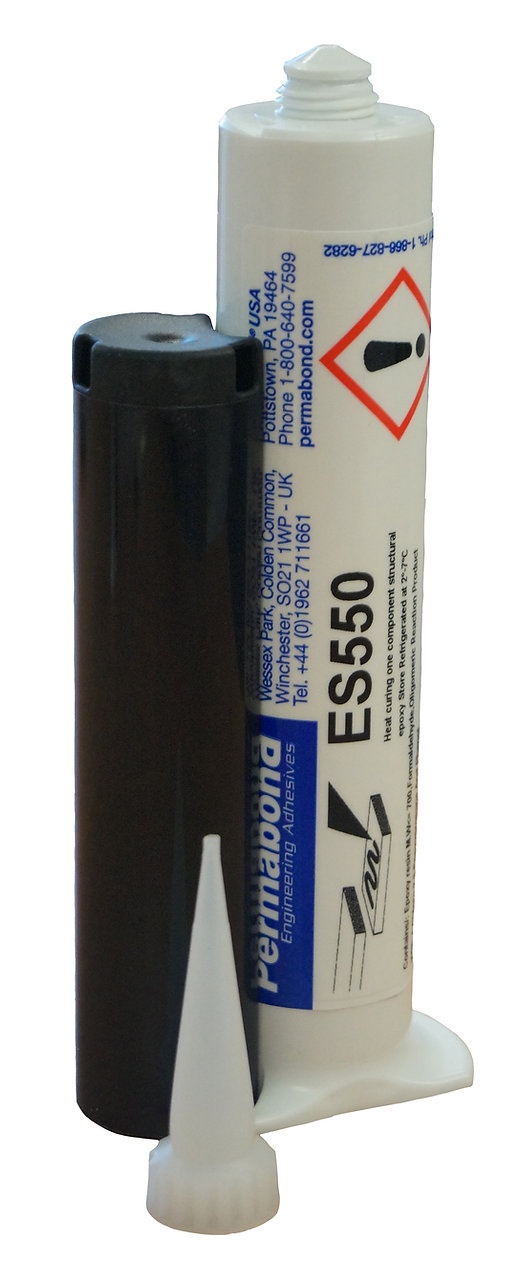

Permabond ES550 is a premium single-part heat cure epoxy adhesive developed for demanding industrial applications requiring exceptional strength, durability and high-temperature performance.
Unlike conventional two-part epoxies, ES550 is supplied ready to use with no weighing or mixing required, making application faster, cleaner and more consistent. Its toughened, non-sagging formulation remains in place during curing, making it particularly suitable for bonding vertical surfaces and precision assemblies.
Designed for structural bonding of metals, ceramics, ferrites, composites and synthetic or natural diamonds, ES550 provides outstanding peel strength, impact resistance and vibration resistance in challenging industrial environments. It is widely used for manufacturing and repairing diamond cutting tools, abrasive tooling and high-performance engineering components.
Key Features
- Single-part epoxy adhesive
- No mixing required
- Heat cure formulation
- High structural strength
- Excellent peel strength
- Excellent shear strength
- Excellent impact resistance
- Excellent vibration resistance
- Excellent chemical resistance
- High temperature resistance
- Non-sagging paste
- Gap filling up to 5mm
- Suitable for industrial manufacturing
Typical Applications
- Diamond tool manufacture
- Diamond cutting discs
- Core drill bits
- Grinding wheels
- PCD tooling
- Ceramics
- Ferrites
- Metal bonding
- Composite bonding
- Industrial engineering
- Aerospace components
- Tool repair
Suitable Materials
- Diamond
- Synthetic diamond
- Steel
- Aluminium
- Ferrites
- Ceramics
- Composite materials
- Engineering metals
Technical Specifications
| Property | Value |
|---|---|
| Chemistry | Single-part epoxy |
| Appearance | Silver-grey paste |
| Pack Size | 100g |
| Cure Method | Heat cure |
| Viscosity | 1,000,000 to 2,000,000 mPa.s |
| Maximum Gap Fill | 5mm |
| Glass Transition Temperature | 120°C |
| Shear Strength (Steel) | 27 to 41 N/mm² |
| Impact Strength | 25 to 35 kJ/m² |
| Hardness | 80 to 85 Shore D |
| Storage Temperature | 2°C to 7°C |
Technical values are typical and may vary depending on substrates and surface preparation.
Typical Cure Schedule
ES550 requires heat to achieve full cure.
| Temperature | Cure Time |
|---|---|
| 130°C | 75 minutes |
| 150°C | 60 minutes |
| 170°C | 40 minutes |
Alternative heating methods such as induction heating, infrared lamps and hot-air guns may also be used where appropriate.
Surface Preparation
For maximum bond strength:
- Ensure all surfaces are clean and dry.
- Degrease using acetone or isopropyl alcohol.
- Light abrasion is recommended for aluminium and copper alloys.
- Assemble components immediately after adhesive application before heat curing.
Why Choose Permabond ES550?
Permabond ES550 combines the convenience of a ready-to-use, single-component adhesive with the strength and durability expected from structural epoxies. Its excellent resistance to chemicals, vibration and elevated temperatures makes it suitable for demanding industrial manufacturing environments where long-term reliability is essential.
